Turning Centers
SL 4500 SERIES
최대 5,000mm 장축과 24인치 척까지 대응하는 초대형 수평형 터닝센터
-

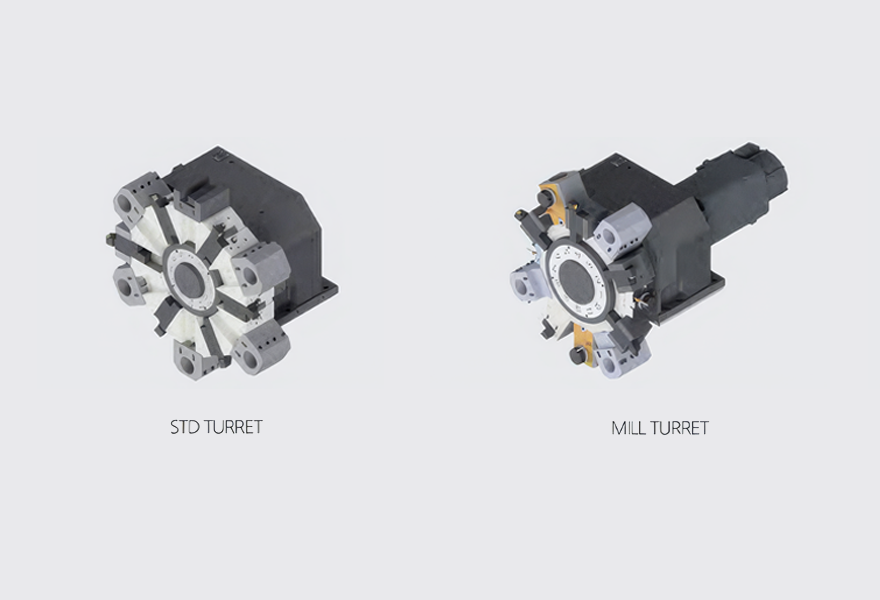

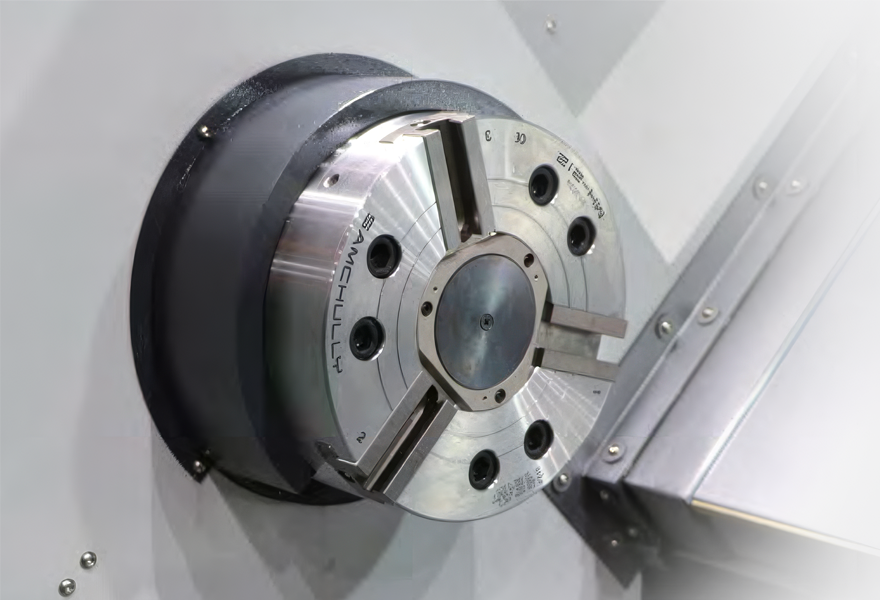

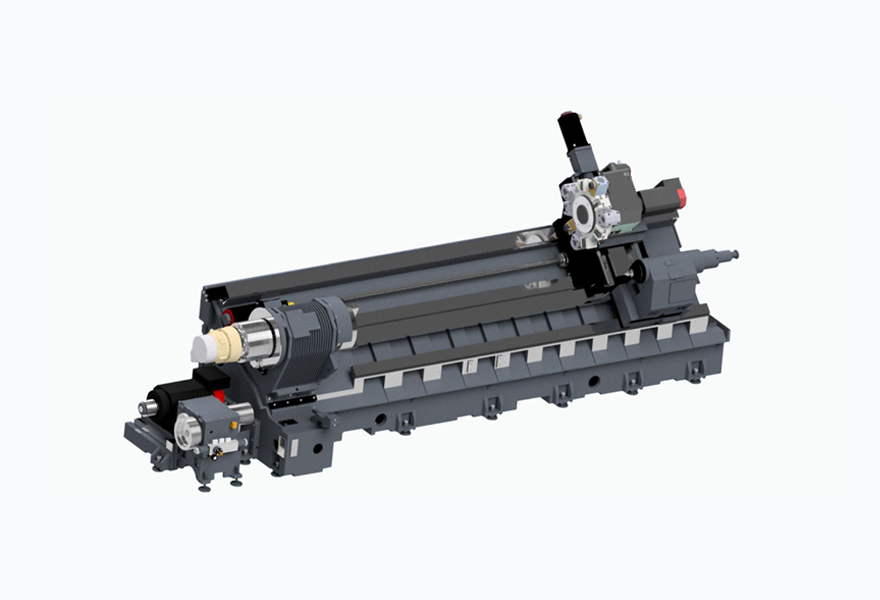

스맥 SL 4500 시리즈는 15·18·21·24인치 척과 최대 가공길이 1,213~5,000mm의 폭넓은 라인업으로 구성되며, 표준 선삭형과 BMT75 밀링형을 선택할 수 있는 대형 수평형 터닝센터입니다. 45도 고토크 튜브형 리브 베드, 전축 BOX GUIDE와 양단고정 프리텐션 이송계를 적용해 대형·장축 공작물의 강력 중절삭에서도 진동과 열변위를 억제하고 안정적인 정밀도를 유지합니다.
SL 4500 SERIES
Product Video
01
/
08
SL 4500 SERIES
Key Features
SL 4500 SERIES
Specifications
| Product | SL 4500 | SL 4500X | SL 4500L | SL 4500XL | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | A | B | C | A | B | C | A | B | C | A | B | C |
| Capacity Capacity | ||||||||||||
| Chuck size(inch) Chuck size(inch) | 18 18 | 21 21 | 24 24 | 18 18 | 21 21 | 24 24 | 18 18 | 21 21 | 24 24 | 18 18 | 21 21 | 24 24 |
| Max Turning Dia.(mm) Max Turning Dia.(inch) | 690 27.17 | 690 27.17 | 690 27.17 | 690 27.17 | 690 27.17 | 690 27.17 | 690 27.17 | 690 27.17 | 690 27.17 | 690 27.17 | 690 27.17 | 690 27.17 |
| Max Turning Length(mm) Max Turning Length(inch) | 1250 49.22 | 1250 49.22 | 1250 49.22 | 2255 88.78 | 2255 88.78 | 2255 88.78 | 3055 120.28 | 3055 120.28 | 3055 120.28 | 5000 198.86 | 5000 198.86 | 5000 198.86 |
| Travel Travel | ||||||||||||
| Travels(mm) Travels(inch) | X: 350 / Z: 1325 X: 13.78 / Z: 52.17 | X: 350 / Z: 1325 X: 13.78 / Z: 52.17 | X: 350 / Z: 1325 X: 13.78 / Z: 52.17 | X: 350 / Z: 2330 X: 13.78 / Z: 91.74 | X: 350 / Z: 2330 X: 13.78 / Z: 91.74 | X: 350 / Z: 2330 X: 13.78 / Z: 91.74 | X: 350 / Z: 3130 X: 13.78 / Z: 123.23 | X: 350 / Z: 3130 X: 13.78 / Z: 123.23 | X: 350 / Z: 3130 X: 13.78 / Z: 123.23 | X: 350 / Z: 5100 X: 13.78 / Z: 200.79 | X: 350 / Z: 5100 X: 13.78 / Z: 200.79 | X: 350 / Z: 5100 X: 13.78 / Z: 200.79 |
| Rapid Travels Rate(m/min) Rapid Travels Rate(ipm) | X: 20 / Z: 20 X: 787.41 / Z: 787.41 | X: 20 / Z: 20 X: 787.41 / Z: 787.41 | X: 20 / Z: 20 X: 787.41 / Z: 787.41 | X: 20 / Z: 18 X: 787.41 / Z: 708.67 | X: 20 / Z: 18 X: 787.41 / Z: 708.67 | X: 20 / Z: 18 X: 787.41 / Z: 708.67 | X: 20 / Z: 10 X: 787.41 / Z: 393.71 | X: 20 / Z: 10 X: 787.41 / Z: 393.71 | X: 20 / Z: 10 X: 787.41 / Z: 393.71 | X: 20 / Z: 18 X: 787.41 / Z: 393.71 | X: 20 / Z: 18 X: 787.41 / Z: 393.71 | X: 20 / Z: 18 X: 787.41 / Z: 393.71 |
| Spindle Spindle | ||||||||||||
| Spindle Speed(RPM) Spindle Speed(RPM) | 1800 1800 | 1500 1500 | 1200 1200 | 1800 1800 | 1500 1500 | 1200 1200 | 1800 1800 | 1500 1500 | 1200 1200 | 1800 1800 | 1500 1500 | 1200 1200 |
| Spindle Motor(Cont./S3)(KW) Spindle Motor(Cont./S3)(HP) | 30 / 37 40.24 / 49.62 | 30 / 37 40.24 / 49.62 | 30 / 37 40.24 / 49.62 | 30 / 37 40.24 / 49.62 | 30 / 37 40.24 / 49.62 | 30 / 37 40.24 / 49.62 | 30 / 37 40.24 / 49.62 | 30 / 37 40.24 / 49.62 | 30 / 37 40.24 / 49.62 | 30 / 37 40.24 / 49.62 | 30 / 37 40.24 / 49.62 | 30 / 37 40.24 / 49.62 |
| Turret Turret | ||||||||||||
| Number of Tool(ea) Number of Tool(ea) | 12 12 | 12 12 | 12 12 | 12 12 | 12 12 | 12 12 | 12 12 | 12 12 | 12 12 | 12 12 | 12 12 | 12 12 |
| Machine Size Machine Size | ||||||||||||
| Length(mm) Length(inch) | 4710 185.43 | 4710 185.43 | 4710 185.43 | 5570 219.29 | 5570 219.29 | 5570 219.29 | 6350 250 | 6350 250 | 6350 250 | 8700 342.52 | 8700 342.52 | 8700 342.52 |
| Width(mm) Width(inch) | 2230 80.87 | 2230 80.87 | 2230 80.87 | 2153 84.76 | 2153 84.76 | 2153 84.76 | 2287 90.04 | 2287 90.04 | 2287 90.04 | 2395 94.29 | 2395 94.29 | 2395 94.29 |
| Height(mm) Height(inch) | 2320 91.34 | 2320 91.34 | 2320 91.34 | 2359 92.87 | 2359 92.87 | 2359 92.87 | 2329 91.69 | 2329 91.69 | 2329 91.69 | 2382 93.78 | 2382 93.78 | 2382 93.78 |
| Weight(kg) Weight(lb) | 10000 22046.23 | 11000 24250.85 | 11000 24250.85 | 13000 28660.09 | 13000 28660.09 | 13000 28660.09 | 20000 44092.45 | 20000 44092.45 | 20000 44092.45 | 22500 49604.01 | 22500 49604.01 | 22500 49604.01 |
