제목 : SL1500/1500M/SL2000/2000M

순번
50
작성자
관리자
작성일
2016-07-19
조회수
3,177
첨부파일

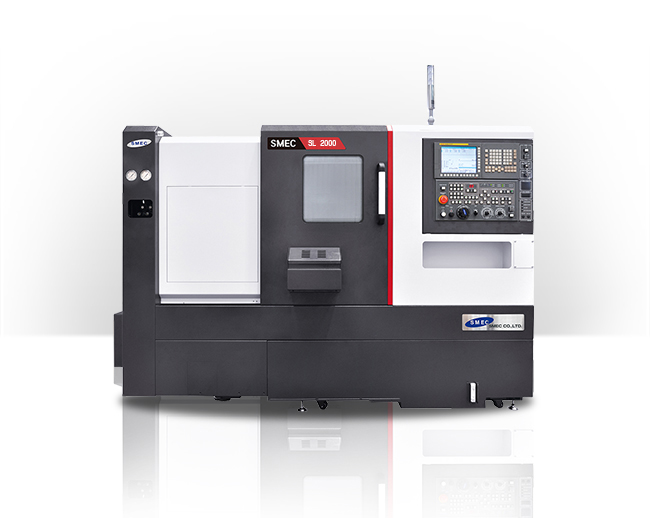

SL1500/1500M
SL2000/2000M

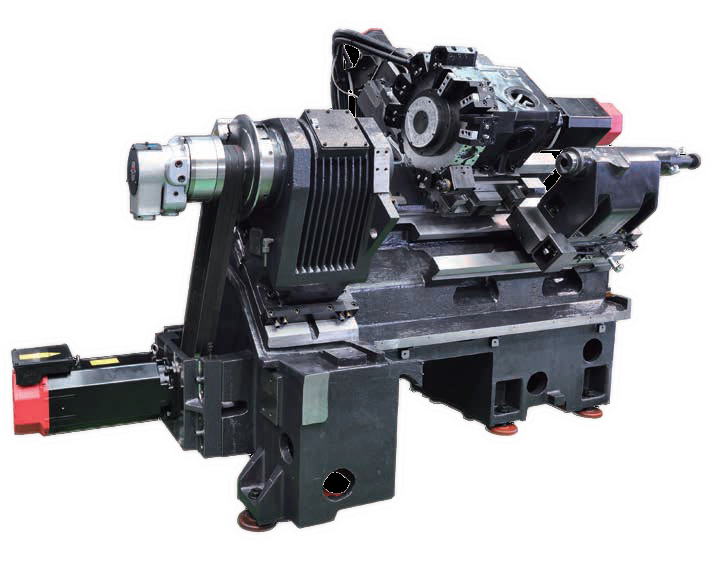

Strongest in its class with superb structural design,
Simultaneous heavy duty and precision turning!


Product Features

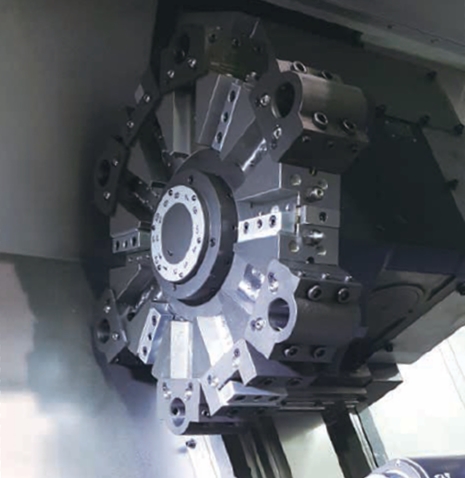

  • Non-cutting time significantly reduced with installation of high speed turret with 0.15 sec indexing time
  • Easier Hydraulic valve control
  • Easier Coolant tank cleaning

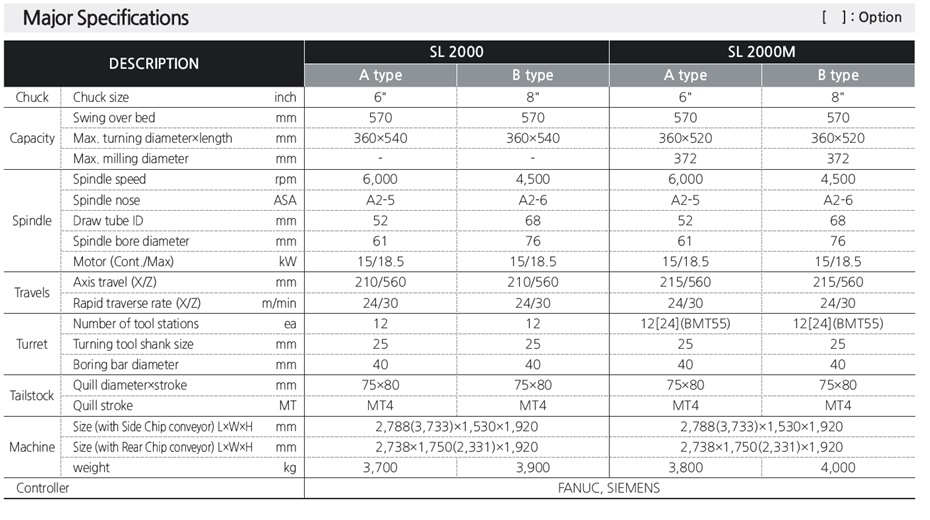

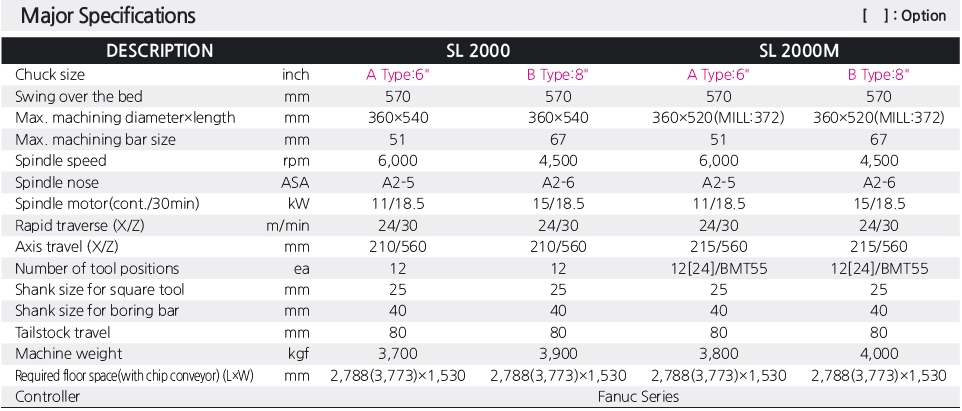

Major Specifications

[ ] : Option
DESCRIPTION SL 1500 SL 1500M SL 2000 SL 2000M
Swing over the bedmm 510 510 510 510
Max. machining diameter × lengthmm 360 × 560 360 × 520 360 × 540 360 × 520
Max. machining bar sizemm 52 52 52(68) 52(68)
Chuck size inch 6 6 8 8
Spindle speed rpm 6,000 6,000 4,500 4,500
Spindle nose ASA A2-5 A2-5 A2-6 A2-6
Spindle motor(cont./30min) kW 11/18.5 15/18.5 15/18.5 15/18.5
Rapid traverse(X/Z) m/min 24/30 24/30 24/30 24/30
Axis travelea 12 12(BMT55) 12 12(BMT55)
Shank size for square toolmm 25 25 25 25
Shank size for boring barmm 40 40 40 40
Tailstock travelmm 80 80 80 80
Machine weightkgf 3,700 3,800 3,900 4,000
Floor Space(L×W)mm 2,643[3,713]×1,560 2,643[3,713]×1,560 2,643[3,713]×1,560 2,643[3,713]×1,560
Controller Fanuc Oi-TF
