SL 2500
SL 3000
BOX WAY TYPE TURNING CENTER

Stabilized Structure that Optimizing Productivity!


Product Features

  • 'Curvic' Coupling turret for easy maintenance after collision.
  • Rigid single tube type bed design (45 degree slant) ensures minimum bending and torsion even during heavy duty cutting and high speed turning operations.
  • Wide guide area suffiecient to absorbes working loads.

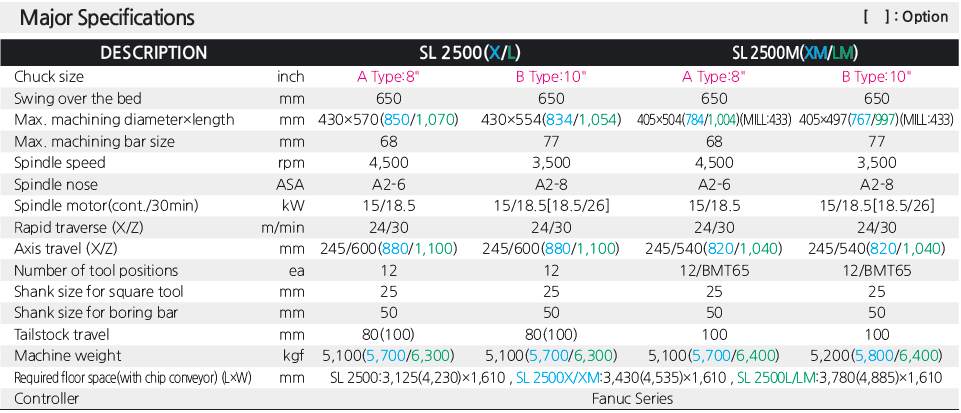

SL2500 Major Specifications

[ ] : Option
DESCRIPTION SL 2500A SL 2500AM SL 2500B SL 2500BM
Swing over the bedmm 650 650 650 650
Max. machining diameter×lengthmm 430 × 550 405 × 520 430 × 550 405 × 520
Max. machining bar sizemm 68 68 77 77
Chuck size inch 8 8 10 10
Spindle speed rpm 4,500 4,500 3,500 3,500
Spindle nose ASA A2-6 A2-6 A2-8 A2-8
Spindle motor(cont./30min) kW 15/18.5 15/18.5 15/18.5[18.5/26] 15/18.5[18.5/26]
Rapid traverse(X/Z) m/min 24/30 24/30 24/30 24/30
Axis travel (X/Z)mm 245/600 245/540 245/600 245/540
Number of tool positionsea 12 12(BMT65) 12 12(BMT65)
Shank size for square toolmm 25 × 25 25 × 25 25 × 25 25 × 25
Shank size for boring barmm 50 50 50 50
Tailstock travelmm 80 100 80 100
Machine weightkgf 5,100 5,100 5,100 5,200
Floor Space(L×W)mm 3,125[4,230] × 1,610 3,125[4,230] × 1,610 3,125[4,230] × 1,610 3,125[4,230] × 1,610
Controller Fanuc Oi-TD(10.4")

SL3000 Major Specifications

[ ] : Option
DESCRIPTION SL 3000A SL 3000AM SL 3000B SL 3000BM
Swing over the bedmm 650 650 650 650
Max. machining diameter×lengthmm 430 × 550 405 × 520 430 × 550 405 × 520
Max. machining bar sizemm 76 76 90 90
Chuck size inch 10 10 12 12
Spindle speed rpm 3,500 3,500 3,000 3,000
Spindle nose ASA A2-8 A2-8 A2-8 A2-8
Spindle motor(cont./30min) kW 18.5/26 18.5/26 18.5/26 18.5/26
Rapid traverse(X/Z) m/min 24/30 24/30 24/30 24/30
Axis travel (X/Z)mm 245/600 245/540 245/600 245/540
Number of tool positionsea 12 12(BMT65) 12 12(BMT65)
Shank size for square toolmm 25 × 25 25 × 25 25 × 25 25 × 25
Shank size for boring barmm 50 50 50 50
Tailstock travelmm 80 100 80 100
Machine weightkgf 5,200 5,200 5,200 5,300
Floor Space(L×W)mm 3,125[4,230] × 1,610 3,125[4,230] × 1,610 3,125[4,230] × 1,610 3,125[4,230] × 1,610
Controller Fanuc Oi-TD(10.4")
