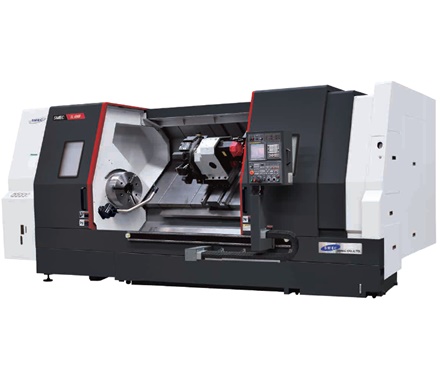

BOX WAY TYPE TURNING CENTER

High-performance Large Machining Capacity Turning Center!


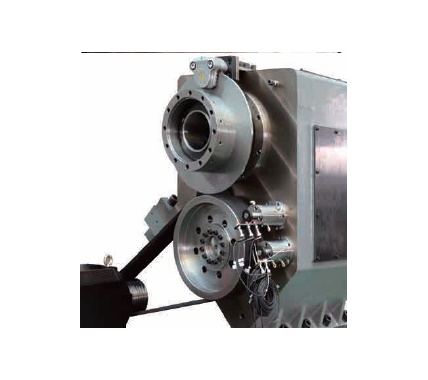

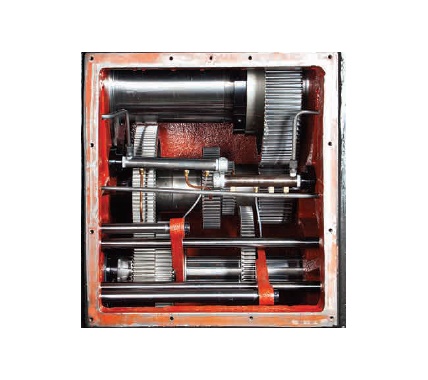

Product Features

  • The strongest power and the highest accuracy in its class, by optimized design.

Major Specifications

[ ] : Option
DESCRIPTION PL 60 PL 60M PL 60X PL 60XM
Swing over the bedmm 1,030 1,030 1,030 1,030
Max. machining diameter×lengthmm 900 × 1,000 900 × 1,000 900 × 2,070 900 × 2,070
Max. machining bar sizemm 139.5 139.5 139.5 139.5
Chuck size inch 21 21 21 21
Spindle speed rpm 1,500 1,500 1,500 1,500
Spindle nose ASA A2-15 A2-15 A2-15 A2-15
Spindle motor(cont./30min) kW 37/45 37/45 37/45 37/45
Rapid traverse (X/Z) m/min 12/18 12/18 12/18 12/18
Axis travel (X/Z)mm 470/1,050 470/1,050 470/2,000 470/2,000
Number of tool positionea 12(BMT85) 12(BMT85) 12(BMT85) 12(BMT85)
Shank size for square toolmm 32 × 32 32 × 32 32 × 32 32 × 32
Shank size for boring barmm 80 80 80 80
Tailstock travelmm 150 150 150 150
Machine weightkgf 16,500 16,500 19,000 19,000
Required floor space (L×W)mm 5,158 × 2,564 5,158 × 2,564 6,203 × 2,760 6,203 × 2,760
Controller Fanuc Oi-TD (21i-TB)

[ ] : Option
DESCRIPTION PL 60 PL 60L PL 60XL PL 60XLM
Swing over the bedmm 1,030 1,030 1,030 1,030
Max. machining diameter×lengthmm 900 × 3,200 900 × 3,200 900 × 5,050 900 × 5,050
Max. machining bar sizemm 139.5 139.5 139.5 139.5
Chuck size inch 21 21 21 21
Spindle speed rpm 1,500 1,500 1,500 1,500
Spindle nose ASA A2-15 A2-15 A2-15 A2-15
Spindle motor(cont./30min) kW 37/45 37/45 37/45 37/45
Rapid traverse (X/Z) m/min 12/18 12/18 12/18 12/18
Axis travel (X/Z)mm 470/3,270 470/3,270 470/5,100 470/5,100
Number of tool positionea 12(BMT85) 12(BMT85) 12(BMT85) 12(BMT85)
Shank size for square toolmm 32 × 32 32 × 32 32 × 32 32 × 32
Shank size for boring barmm 80 80 80 80
Tailstock travelmm 150 150 150 150
Machine weightkgf 22,000 22,000 26,000 26,000
Required floor space (L×W)mm 7,400 × 2,760 7,400 × 2,760 9,400 × 2,860 9,400 × 2,860
Controller Fanuc Oi-TD (21i-TB)
