제목 : SL2000/2500SY(Y) Series

순번
39
작성자
관리자
작성일
2016-07-19
조회수
3,883
첨부파일

SL2000ASY/AY/BSY/BY
SL2500ASY/AY/BSY/BY
Y-AXIS HORIZONTAL TURNING CENTER

Strongest in its class with superb structural design,
Simultaneous heavy duty and precision turning!


Product Features

  • 30 degree torque tube type bed to support heavy duty turning
  • significantly reduced non-cutting time and efficient turning
  • Low center of gravity reducing vibration, thermal deformation and improving rigidity

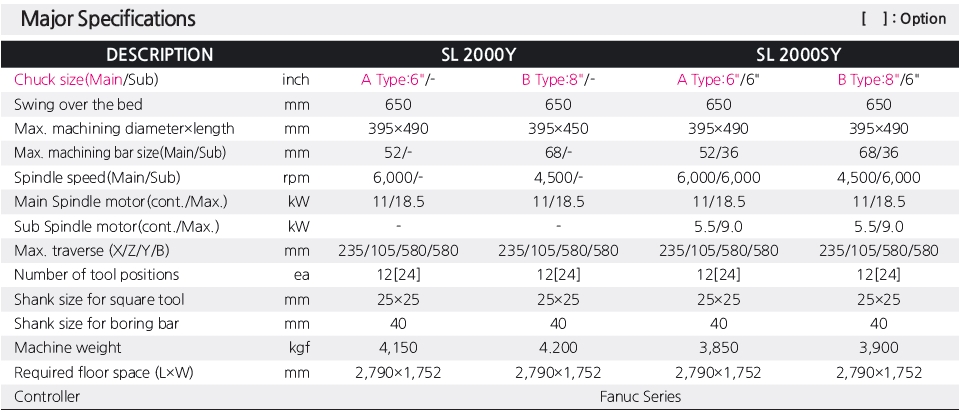

SL2000ASY/AY, SL2000BSY/BY Major Specifications

[ ] : Option
DESCRIPTION SL 2000ASY SL 2000AY SL 2000BSY SL 2000BY
Swing over the bedmm 650 650 650 650
Max. machining diameter × lengthmm 395× 490 395× 490 395× 490 395× 490
Max. machining bar size(Main/Sub)mm 52/36 52/- 68/36 68/-
Chuck size(Main/Sub) inch 6/6 6/- 8/6 8/6
Spindle speed(Main/Sub) rpm 6,000/6,000 6,000/- 4,500/6,000 4,500/-
Spindle nose(Main/Sub) ASA A2-5/A2-5 A2-5/- A2-6/A2-5 A2-6/-
Main Spindle motor(cont./30min) kW 11/18.5 11/18.5 11/18.5 11/18.5
Sub Spindle motor(cont./30min) kW 9.0/5.5 - 9.0/5.5 -
Rapid traverse(X/Y/Z/B) m/min 24/10/30/24 24/10/30/24 24/10/30/24 24/10/30/24
Shank size for square toolmm □25 □25 □25 □25
Shank size for boring barmm 40 40 40 40
Machine weightkgf 4,150 3,850 4,200 3,900
Floor Space (L×W×H)mm 2,790×1,752×2,085 2,790×1,752×2,085 2,790×1,752×2,085 2,790×1,752×2,085
Controller Fanuc 0i-TF

SL2500ASY/AY, SL2500BSY/BY Major Specifications

[ ] : Option
DESCRIPTION SL 2500ASY SL 2500AY SL 2500BSY SL 2500BY
Swing over the bedmm 650 650 650 650
Max. machining diameter × lengthmm 360× 520 360× 535 360× 520 360× 530
Max. machining bar size(Main/Sub)mm 65/36 65/- 77/36[52] 77/-
Chuck size(Main/Sub) inch 8/6 8/- 10/6[8] 10/-
Spindle speed rpm 6,000 - 6,000[4,500] -
Spindle nose(Main/Sub) ASA A2-6/A2-5 A2-6/- A2-8/A2-5[A2-6] A2-8/-
Main Spindle motor(cont./30min) kW 11/18.5 11/18.5 18.5/22 18.5/22
Sub Spindle motor(cont./30min) kW 9.0/5.5 - 9.0[15/11]/5.5 -
Rapid traverse((X/Y/Z/B) m/min 18/12/24/24 18/12/24/24 18/12/24/24 18/12/24/24
Shank size for square toolmm □25 □25 □25 □25
Shank size for boring barmm 50 50 50 50
Machine weightkgf 5,000 5,000 5,000 5,000
Floor Space (L×W×H)mm 3,603×1,930×2,085 3,603×1,930×2,085 3,603×1,930×2,085 3,603×1,930×2,085
Controller Fanuc 0i-TF
