PL 250V / 250VM
PL 300V / 300VM

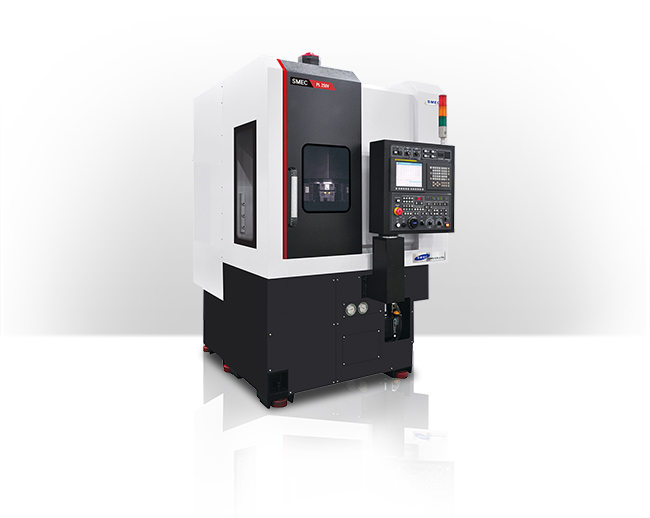

VERTICAL LATHE

Vertical lathe developed for automatic process line of automobile and electric parts and maintain high accuracy in long-term machining process!

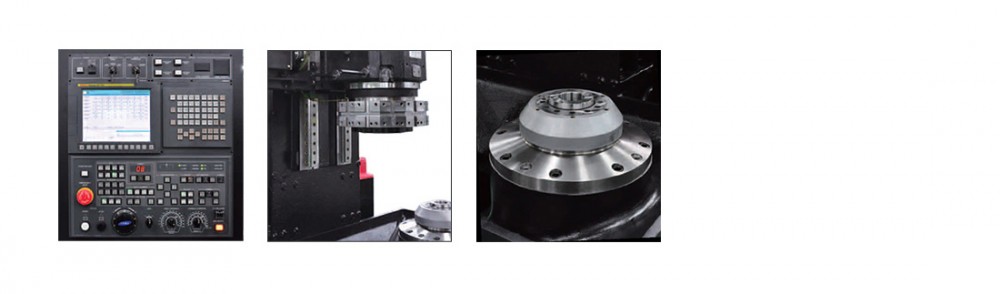

Product Features

  • Quiet & Heat Design
  • Possible to make versatile automatic system line조

Major Specifications

[ ] : Option
DESCRIPTION PL 250V PL 250VM PL 300V PL 350VM
Swing over the bedmm 550 550 550 550
Max. machining diameter×lengthmm 400×245 400×245 400×245 400×245
Spindle speed rpm 4,000 [3,500] 4,000 [3,500] 3,500 3,500
Spindle nose ASA A2-6 A2-6 A2-8 A2-8
Spindle motor(cont./30min) kW 11/15 11/15 18.5/22 18.5/22
Rapid traverse (X/Z/B)m/min 24/24 24/24 24/24 24/24
Axis travel (X/Z)mm 230/280 230/280 230/280 230/280
Number of tool positionsea 12 12 [BMT55] 12 12 [BMT55]
Shank size for square toolmm 25 × 25 25 × 25 25 × 25 25 × 25
Shank size for boring barmm 40 40 50 50
Machine weightkgf 5,000 5,100 5,400 5,500
Required floor space(L×W×H)mm 1,502×1,969×2,460 1,502×1,969×2,460 1,502×1,969×2,460 1,502×1,969×2,460
Controller Fanuc Oi-TD
