PL 800V(R,L)
PL 800VM(R,L)
VERTICAL LATHE

PL 800V is a heavy duty, ultra precision turning center, box way design, 2 step gear box, servo driven turret adopted.


Product Features

  • 2 Step Gear box (Opt.)

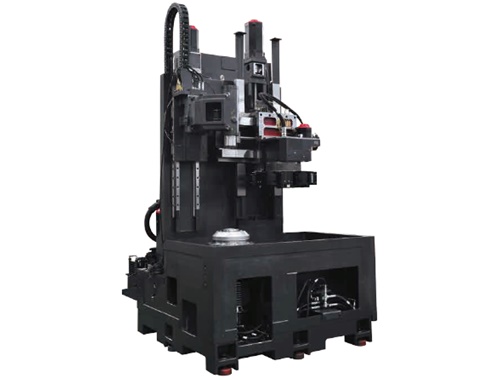

  • High rigidity Box type column

Major Specifications

[ ] : Option
DESCRIPTION PL 800V(R,L) PL 800VM(R,L)
Swing over the bedmm 890 890
Max. machining diameter×lengthmm 810 × 800 810 × 800
Spindle speed rpm 2,000 2,000
Spindle nose ASA A2-11 A2-11
Spindle motor(cont./30min) kW 22/30 [30/37] 22/30 [30/37]
Rapid traverse(X/Z) m/min 20/20 20/20
Axis travel (X/Z)mm 430/800 430/800

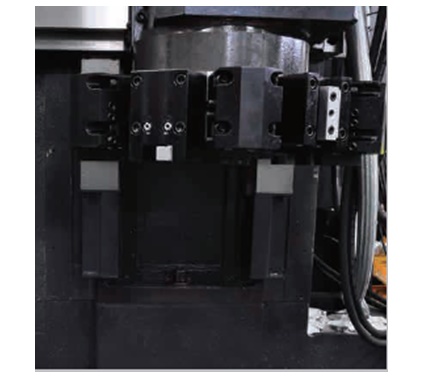

Number of tool positionsea 12/SERVO Driven 12/SERVO Driven
Shank size for square toolmm 32 × 32 32 × 32
Shank size for boring barmm 63 63
Machine weightkgf 11,000 11,200
Required floor space (L×W×H) mm 2,050 × 2,782 × 3,452 2,050 × 2,782 × 3,452
Controller Fanuc Oi-TD
