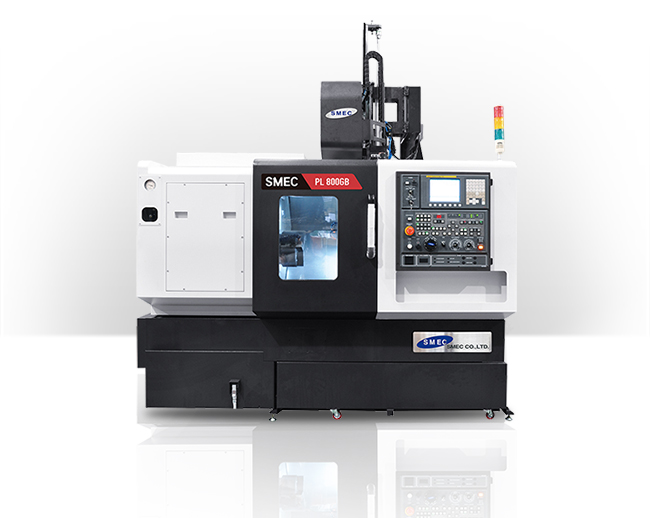

PL 800GB
GANG CNC TURNING CENTER

High speed, high precision ceramic and quart grinding


Product Features

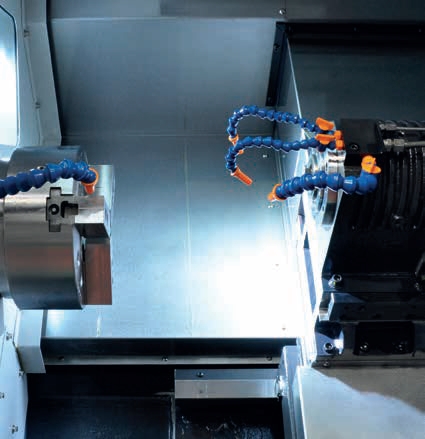

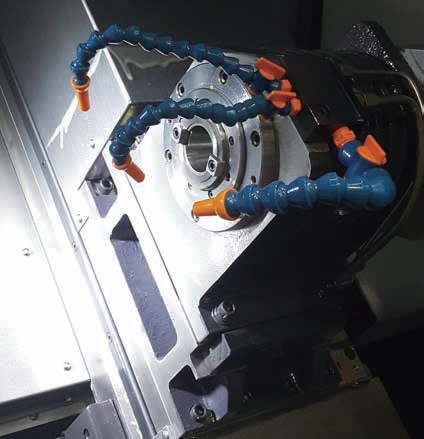

  • Grinding Spindle installed on Gang Type lathe for grinding
  • With ID and OD cutting capabilities and Slide Unit installed, simultaneous rough grinding and polishing as well as ceramic grinding is possible

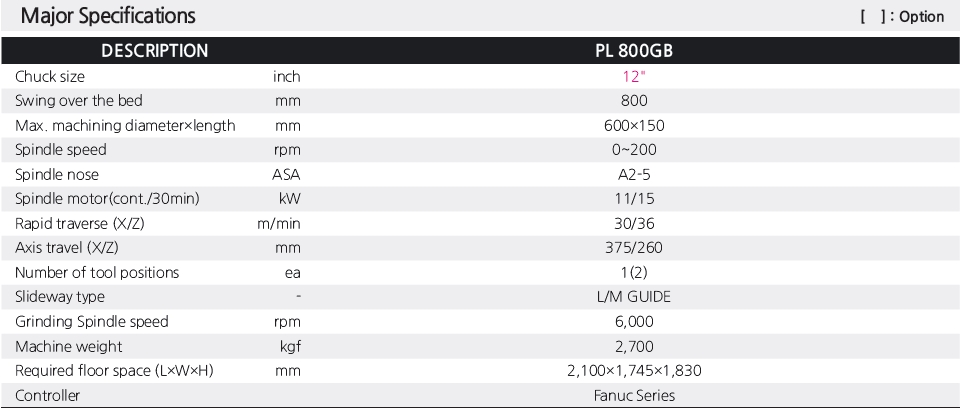

Major Specifications

[ ] : Option
DESCRIPTION PL 800GB
Swing over the bedmm 800
Max. machining diameter×lengthmm 600 ×150
Spindle speed rpm 4,500
Spindle nose ASA A2-6
Spindle motor(cont./30min) kW 7.5/11
Rapid traverse(X/Z) m/min 20/30
Axis travel (X/Z)mm 400/400
Machine weightkgf 3,600
Required floor space(L×W)mm 2,535 × 1,843 × 2,880
Controller Fanuc Oi-Mate TD
