제목 : SYD 200T2Y2

순번
32
작성자
관리자
작성일
2016-07-19
조회수
1,920
첨부파일

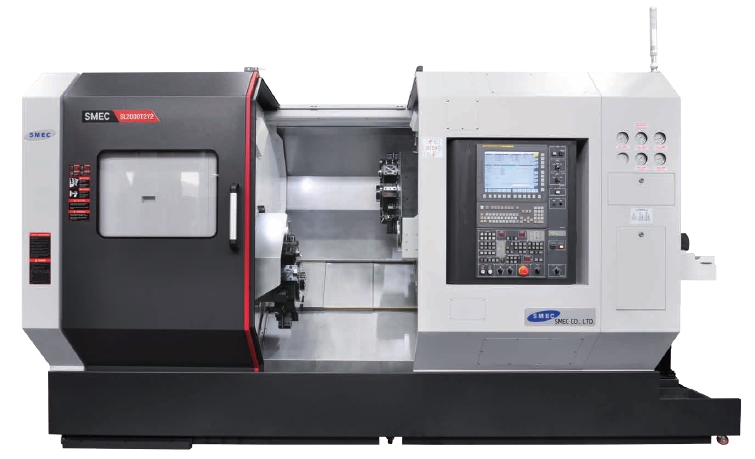

SYD 200T2Y2
MULTU AXIS TURNING CENTER

Twin Spindle and Turrets for High Productivity


Product Features

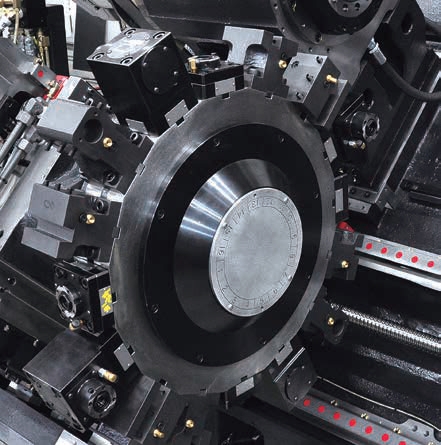

  • Upper and lower turrets are high-speed, highlyreliable servo drive turrets with up to 32 toolstations, enabling high-speed, high-precision machining of complicated parts with single setup.

Major Specifications

DESCRIPTION SYD 200T2Y2
Swing over the bedmm 960
Max. turning diameter [Upper / Lower]×lengthmm 380/380×250
Spindle speedrpm 5,000
Spindle nose ASA A2-6

Main spindle motor [Sub spindle motor] (Max./Cont.) kw

18.5/22 [11/15]
Rapid traverse X1/X2/E[X3] mm 30
Y1/Y2rpm 20
Z1/Z2/W[Z3] inch 40
Axis travel X1/X2/E[X3] ASA 230/230/120
Y1/Y2mm ±50/±50
Z1/Z2/W[Z3]deg 450/450/450
Machine weighkgf 10,000
Required floor space(L×W×H) mm 3,000 × 2,650 × 2,300
Controllerdeg Fanuc 31i-B
